What is a double block and bleed valve?

A double block and bleed valve is like having three valves in one.

double block and bleed valves (DBB valves) play a crucial role in ensuring safety and efficiency in various industrial applications. In this article, we will explore what DBB valves are, their applications, benefits, and key factors to consider when selecting one.

What is a Double Block and Bleed Valve?

A double block and bleed valve is like having three valves in one.

API 6D defines a double block and bleed valve as a "single valve with two seating surfaces that, in the closed position, provides a seal against pressure from both ends of the valve with a means of vending/bleeding the cavity between the seating surfaces."

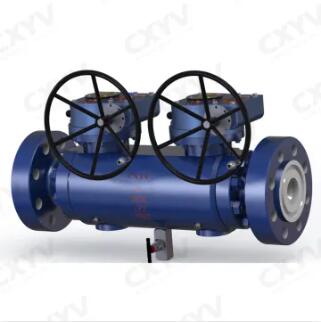

There are a couple different styles of double block and bleed valves. One style has two independently seating valves inside, with a bleed or drain valve. This configuration is referred to as a double isolation and bleed (DIB). The DIB valve can isolate either side of the valve (bi-directionally) to vent or bleed the cavity and isolate piping.

This trunnion style Ball Valve from Xiangyu provides double block and bleed in a single valve. This style can isolate piping on both sides of the valve (uni-directionally) to vent/bleed the valve cavity between the seats.

Using a single double block and bleed valve system versus 3 separate valves saves installation time, weight on the piping system, and space. It also cuts down the number of leak paths to the atmosphere, reducing the risk of hazards when transferring liquids dangerous to humans or the environment.

Which Applications Require a Double Block and Bleed Valve?

DBB valves are commonly used in industries where safety and environmental protection are paramount, such as oil and gas, petrochemical, and pharmaceutical industries. They are ideal for applications where there is a need to isolate equipment or pipelines to prevent the escape of hazardous fluids.

Some specific applications of DBB valves include:

- Oil and gas production facilities
- Petrochemical plants
- Chemical processing plants
- Power generation facilities
- Pharmaceutical manufacturing plants
- Water and wastewater treatment plants

Benefits of Using a Double Block and Bleed Valve

1. Safety: DBB valves provide a high level of safety by allowing for the isolation of equipment or pipelines, reducing the risk of accidents or spills.

2. Space-saving: The compact design of DBB valves saves space compared to using separate isolation and bleed valves.

3. Cost-effective: By combining the functionality of multiple valves into one unit, DBB valves can reduce installation and maintenance costs.

4. Efficiency: DBB valves allow for quicker isolation and depressurization of equipment or pipelines, reducing downtime during maintenance or repair work.

5. Environmental protection: DBB valves help prevent the escape of hazardous fluids into the environment, reducing the risk of pollution.

How to choose a Double Block and Bleed Valve

When selecting a DBB valve, it is important to consider the following factors: Fluid properties, media, pressure, temperature, application . Perhaps most important, however, is how the valve is used. With multiple configurations available, consider which one best suits your process and needs. If you are not sure which double block relief valve is right for your process, contact us. We can help determine which one is best for you.

Contact us

Double block and bleed valves are essential components in industries where safety, efficiency, and environmental protection are critical. By understanding their functionality, applications, benefits, and key selection criteria, you can make informed decisions when choosing a DBB valve for your specific needs.

For more information or assistance with selecting the right DBB valve for your application, please contact us at Xiangyu Valve.
