DCP Drying

Dicalcium phosphate (DCP), chemically represented as CaHPO₄ (anhydrous) or CaHPO₄·2H₂O (dihydrate), is an inorganic compound widely used in food, pharmaceuticals, animal feed, and industrial applications. Common Drying Equipment: Flash Dryer, Vibration Fluid Bed Dryer.



Dicalcium phosphate (DCP), a calcium phosphate salt with the formula CaHPO₄ (anhydrous) or CaHPO₄·2H₂O (dihydrate), is a critical ingredient in food, pharmaceuticals, and animal feed. Proper drying ensures its stability, flowability, and compliance with application-specific moisture requirements, particularly for hygroscopic dihydrate forms or residual moisture from production.

Key Properties Influencing Drying

Hygroscopicity:
The dihydrate form (CaHPO₄·2H₂O) is moderately hygroscopic and may absorb moisture if exposed to humid environments.
Anhydrous DCP (CaHPO₄) has lower moisture affinity but requires careful drying to maintain purity.
Thermal Sensitivity:
Dihydrate: Loses crystalline water at 109–120°C, transitioning to anhydrous DCP.
Decomposition: Prolonged heating above 200°C converts DCP to calcium pyrophosphate (Ca₂P₂O₇).
Particle Characteristics:

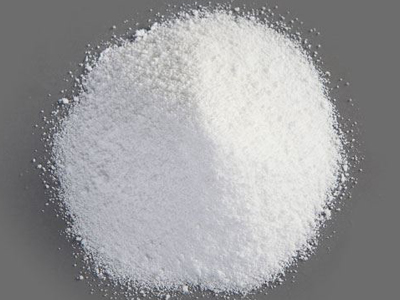

Fine powder (10–100 µm) prone to caking if incompletely dried.

Drying Parameters

Temperature:
Dihydrate: 60–90°C (to remove free moisture without fully dehydrating crystalline water).
Anhydrous: 80–100°C (for residual moisture removal; avoid exceeding 120°C).
Time:
Batch Drying: 2–6 hours, depending on initial moisture and layer thickness.
Continuous Dryers: 30–60 minutes (e.g., fluidized bed or rotary dryers).

Common Drying Equipment:

Flash Dryer :
High-Efficiency Drying Mechanism: XSG Series Spin Flash Dryer employs a tangential air inlet and a high-speed stirrer to create a powerful rotating wind field. This ensures efficient heat transfer and uniform drying of paste, cake, and slurry materials.
Advanced Material Processing: The equipment processes raw materials through a combination of cutting, shearing, blowing, floating, and rotating actions, transforming them into granulated form. This enhances material separation and strengthens the heating exchange process.

Vibration Fluid Bed Dryer:
The vibration source is driven by a vibration motor, which has balanced operation, easy maintenance, low noise and long service life.
High effection, raw material is heates evenly and heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.

Moisture Content Targets:
Food/Pharma: ≤0.5–1.0% (to prevent microbial growth and ensure tablet integrity).
Feed Grade: ≤2–3% (less stringent, but critical for pellet stability).

Critical Considerations

Avoid Overheating:
Excessive temperatures (>120°C) risk decomposition or undesired phase changes.
Monitor thermal profiles to preserve crystalline structure and bioavailability.
Caking Prevention:
Dry to target moisture levels and use anti-caking agents (e.g., silicon dioxide) if permitted.
Post-Drying Handling:
Store in airtight containers with desiccants (silica gel) in low-humidity environments (<40% RH).

For pharmaceutical grades, use nitrogen-purged storage to maintain purity.

Application-Specific Guidelines

Pharmaceutical Tablets:
Strict moisture control (≤0.5%) ensures proper compaction and dissolution rates.
Follow USP/EP guidelines for residual solvents and heavy metals.
Food Fortification:
Dry to ≤1% moisture to prevent clumping in powdered mixes (e.g., infant formula).
Animal Feed:
Balance drying efficiency with cost; higher moisture tolerance (≤3%) is acceptable.

Troubleshooting

Caking/Clumping:
Redry with higher airflow or mill dried powder to restore flowability.
Discoloration:
Caused by overheating; verify temperature uniformity and reduce exposure time.
High Residual Moisture:
Extend drying time, optimize airflow, or switch to vacuum-assisted drying.

Safety and Compliance

Regulatory Standards:
Food Grade: FCC compliance (heavy metals ≤10 ppm lead, arsenic ≤3 ppm).
Pharma Grade: USP/EP monographs for purity, particle size, and microbial limits.
Handling:
Use dust control measures (e.g., HEPA filters) to avoid inhalation hazards.
Non-toxic but may irritate eyes/skin; wear PPE (gloves, goggles).
