PCB (Printed Circuit Board) Assembly Technologies: SMT Vs. Through Hole

SMT involves placing components directly onto the surface of the PCB. Components have small contacts or leads that are soldered onto designated pads on the PCB. SMT is widely used due to its compactness and suitability for high-volume automated assembly.



PCB (Printed Circuit Board) assembly technologies include various processes and techniques used to attach electronic components to a PCB. These technologies have advanced to meet the growing complexity and miniaturization of electronic devices. Key PCB assembly technologies include:



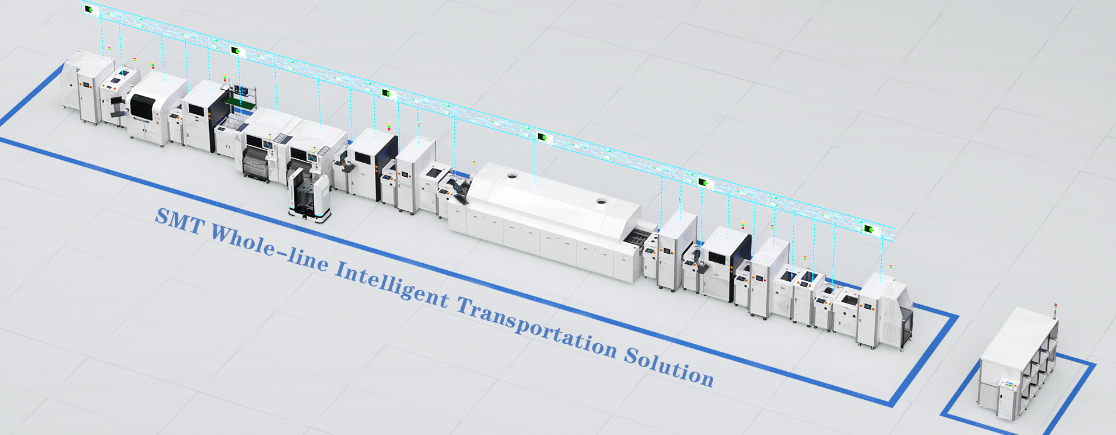

1. Surface Mount Technology (SMT):



SMT involves placing components directly onto the surface of the PCB. Components have small contacts or leads that are soldered onto designated pads on the PCB. SMT is widely used due to its compactness and suitability for high-volume automated assembly.



 - Pick and Place Machines: These machines accurately place SMT components onto the PCB using a robotic arm. They are capable of high-speed and precise component placement.



 - Reflow Soldering: After components are placed, the entire PCB is heated in a reflow oven to melt the solder paste, forming strong connections between components and pads.





2. Through-Hole Technology:



Through-hole technology involves inserting component leads through holes drilled in the PCB and soldering them on the opposite side. This method is known for its mechanical stability and is used for components that need strong connections.



- Manual Assembly: Traditional through-hole assembly involves manual soldering. Advanced methods include wave soldering, where the entire PCB passes over a wave of molten solder.



3. Mixed Technology:



Many PCBs combine Surface Mount Technology (SMT) and through-hole components to achieve a balance of mechanical strength, reliability, and compact design.



4. Automated Optical Inspection (AOI):



AOI systems use cameras to inspect PCBs for defects during or after assembly. They can detect issues such as missing components, misaligned components, and soldering defects.



5. X-Ray Inspection:



X-ray inspection is used to examine hidden solder joints, ensuring proper connections and identifying potential defects such as solder voids.



6. BGA and QFN Assembly:



Ball Grid Array (BGA) and Quad Flat No-Lead (QFN) packages have hidden solder balls or pads underneath the component. Specialized equipment and techniques are required to solder these components.



7. Rework and Repair:



PCB rework involves correcting assembly defects, replacing faulty components, and addressing issues such as solder bridges. Special tools and techniques are used to desolder and replace components.



8. Selective Soldering:



Selective soldering machines target specific areas of the PCB, enabling precise soldering of through-hole components in assemblies dominated by SMT components.



9. Wire Bonding:



Wire bonding is used to connect microchips or integrated circuits to the PCB. This process involves attaching thin wires between the chip's pads and the PCB's bonding pads.



10. Flip Chip Assembly:



Flip chip technology involves mounting chips face-down onto the PCB. Solder bumps connect the chip's pads to the PCB's pads, enabling compact designs.



These technologies are utilized depending on factors such as the type of components used, production volume, desired reliability, and industry standards. The ongoing advancement of PCB assembly technologies facilitates the development of increasingly complex and efficient electronic devices.
