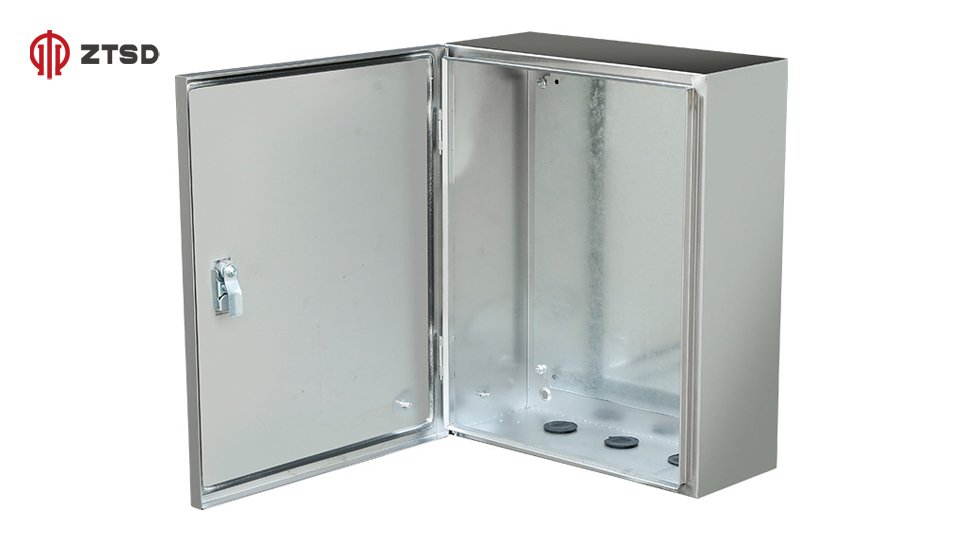

Electrical distribution box enclosure

Electrical distribution box enclosure

An electrical distribution box enclosure is a critical component of power distribution systems, designed to house and protect internal electrical equipment (such as circuit breakers, switches, and meters) from external environmental factors while preventing accidental contact with live parts. Below is a detailed overview of distribution box enclosures.

1. Key Functions

• Protection: Shields against dust, water, corrosion, and foreign objects (e.g., insects, rodents).

• Electrical Safety: Isolates live components to prevent electric shock hazards.

• Mechanical Durability: Resists physical impacts (e.g., vibrations, knocks) to prolong equipment lifespan.

• Heat Dissipation & Ventilation: Some enclosures feature ventilation slots or cooling mechanisms for stable operation.

2. Common Materials

Metallic Enclosures

• Cold-Rolled Steel: High strength, durable, often coated with zinc or powder for rust resistance (common in industrial settings).

• Stainless Steel: Corrosion-resistant, ideal for humid or chemically harsh environments (e.g., coastal areas, chemical plants).

• Aluminum: Lightweight with excellent heat dissipation, suitable for outdoor or high-heat applications.

Non-Metallic Enclosures

• Engineering Plastics (PC, ABS): Lightweight, insulating, and cost-effective for residential or low-voltage use.

• Fiberglass-Reinforced Polyester: Heat- and corrosion-resistant, used in specialized industrial applications.

3. Protection Ratings (IP Code)

The Ingress Protection (IP) rating defines an enclosure’s resistance to solids and liquids. Common ratings include:

• IP30: Dust-protected (no water resistance), for dry indoor use.

• IP54: Dust-resistant and splash-proof, suitable for damp or outdoor areas.

• IP65: Dust-tight and resistant to low-pressure water jets (e.g., rain, washdowns).

• IP66/IP67: Waterproof against powerful jets or temporary immersion (extreme outdoor conditions).
